Description
The following are the products of three companies:

1
60mm luneburg lens radar reflector

Reference frequency band (GHz): 1-40
RCS(dBsm): -30.38~1.65
Scattering cross section (㎡): 0.0009~1.46
Specifications (mm): φ60
Weight (g): 25

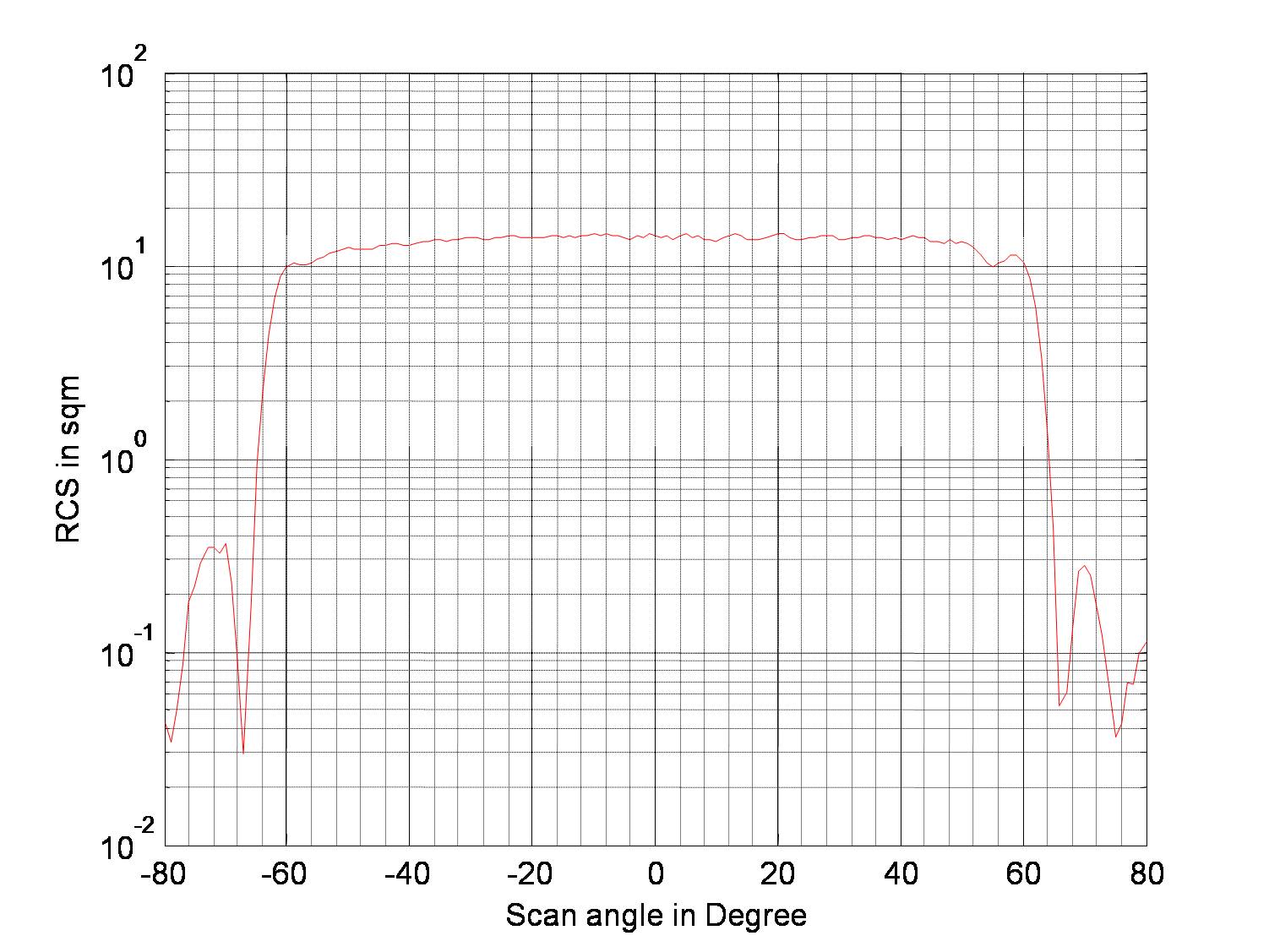

Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.

Frequency：1GHz Frequency：3GHz Frequency：6GHz Frequency：10GHz Frequency：15GHz Frequency：25GHz Frequency：40GHz
RCS
（㎡）		 RCS
（dBsm)		 RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm)
0.0009 -30.38 0.008 -20.84 0.03 -14.8 0.09 -10.38 0.2 -6.8 0.57 -2.4 1.46 1.65


150mm Luneburg Lens Radar Reflector

Reference frequency band (GHz): 1-40
RCS(dBsm) ;-14.5~17.4
Scattering cross section (㎡): 0.034~55.8
Specifications (mm): φ150
Weight (g): 200
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.

 Frequency：1GHz  Frequency：3GHz  Frequency：6GHz  Frequency：10GHz  Frequency：15GHz  Frequency：25GHz  Frequency：40GHz
RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm) RCS （㎡） RCS （dBsm)
0.034 -14.5 0.3 -5 1.2 0.9 3.48 5.4 7.8 8.9 21.8 13.3 55.8 17.4


200mm Luneburg Lens Radar Reflector

Reference frequency band (GHz): 1-40
RCS(dBsm): -0.95~22.4
Scattering cross section (㎡): 0.11~176.3
Specifications (mm): φ200
Weight (g): 475
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.

Frequency: 1GHz Frequency: 3GHz Frequency: 6GHz Frequency: 10GHz Frequency: 15GHz Frequency: 25GHz Frequency: 40GHz
RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm)
0.11 -9.5 0.9 -0.03 3.9 5.9 11 10.4 24.8 13.9 68.9 18.3 176.3 22.4


300mm Luneburg Lens Radar Reflector

Reference frequency band (GHz): 1-40
RCS(dBsm): -2.5~29.5
Scattering cross section (㎡): 0.5~892.9
Specifications (mm): Φ300
Weight (g): 1680
Angle (°) 120
Note: ® is the center point of the incident direction of the RCS.

Frequency: 1GHz Frequency: 3GHz Frequency: 6GHz Frequency: 10GHz Frequency: 15GHz Frequency: 25GHz Frequency: 40GHz
RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm)
0.5 -2.5 5 7 20 13 55.8 17.4 125.5 20.9 348.8 25.4 892.9 29.5


400mm Luneburg Lens Radar Reflector

Reference frequency band (GHz): 1-40
RCS(dBsm): 1.2~33.2
Scattering cross section (㎡): 1.3~2116.6
Specifications (mm): Φ400
Weight (g): 3800
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.

Frequency: 1GHz Frequency: 3GHz Frequency: 6GHz Frequency: 10GHz Frequency:15GHz Frequency: 25GHz Frequency: 40GHz
RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm)
1.3 1.2 11.9 10.7 47.6 16.7 132 21.2 297.6 24.7 826.8 29 2116.6 33.2


1000mm Luneburg Lens Radar Reflector

Reference frequency band (GHz): 1-40
RCS(dBsm): 16.3~50.4
Scattering cross section (㎡): 43~110244.5
Specifications (mm): Φ1000
Weight (g): 59375
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.

Frequency: 1GHz Frequency: 3GHz Frequency: 6GHz Frequency: 10GHz Frequency: 15GHz Frequency: 25GHz Frequency: 40GHz
RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡） RCS（dBsm) RCS（㎡）  RCS（dBsm) RCS（㎡）  RCS（dBsm) RCS（㎡）  RCS（dBsm)  RCS（㎡） RCS（dBsm)
43 16.3 620.1 27.9 2480.5 33.9 6890 38.3 15503 41.9 43064.2 46.3 110244.5 50.4


2.

Luneberg Lens Radar Reflector 2.7 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9991 2.7 0.25 10 80 Rectilinear 0.08 M

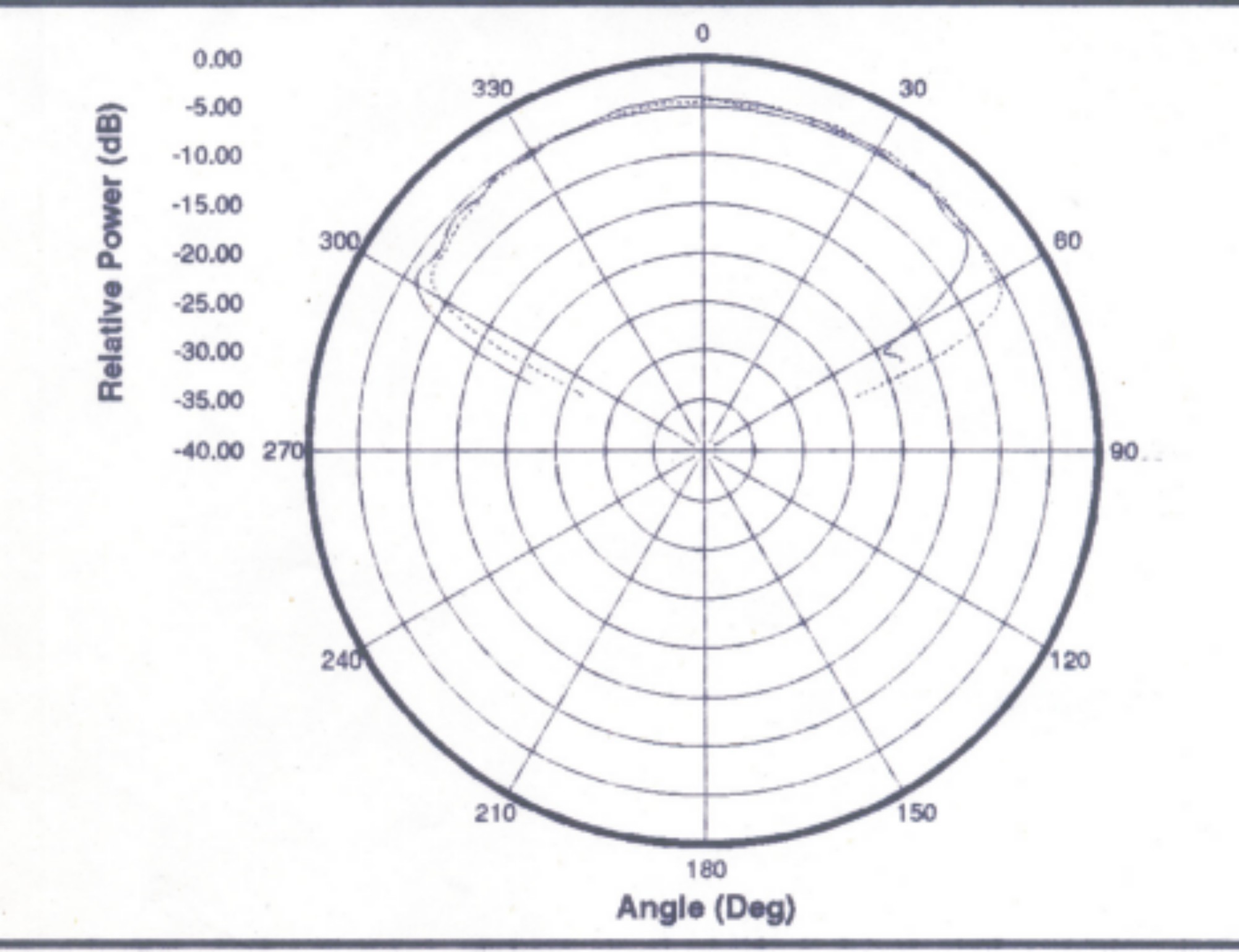

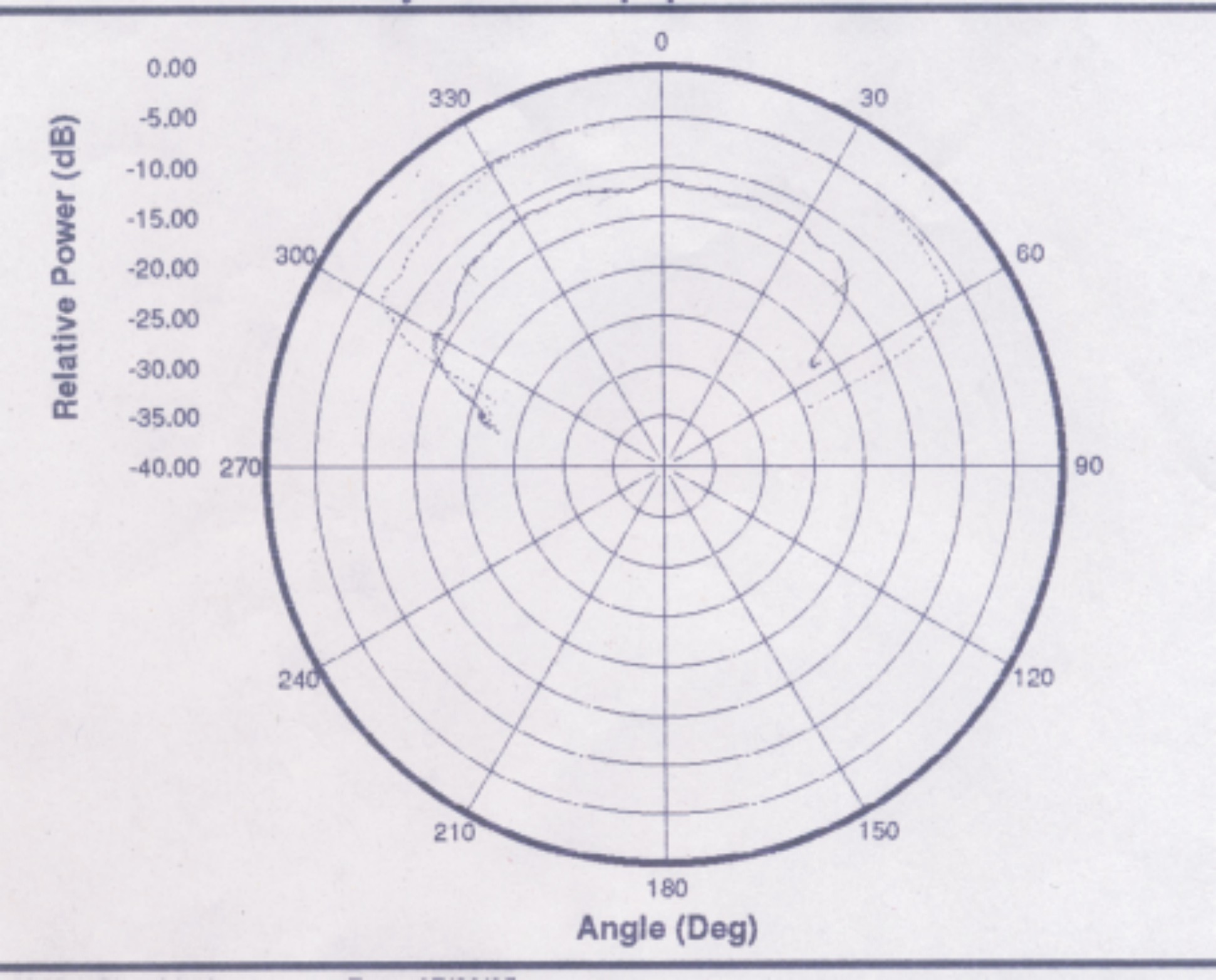

Luneberg Lens 4.0 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9910 4.0 0.7 10 90 Rectilinear 0.18 M

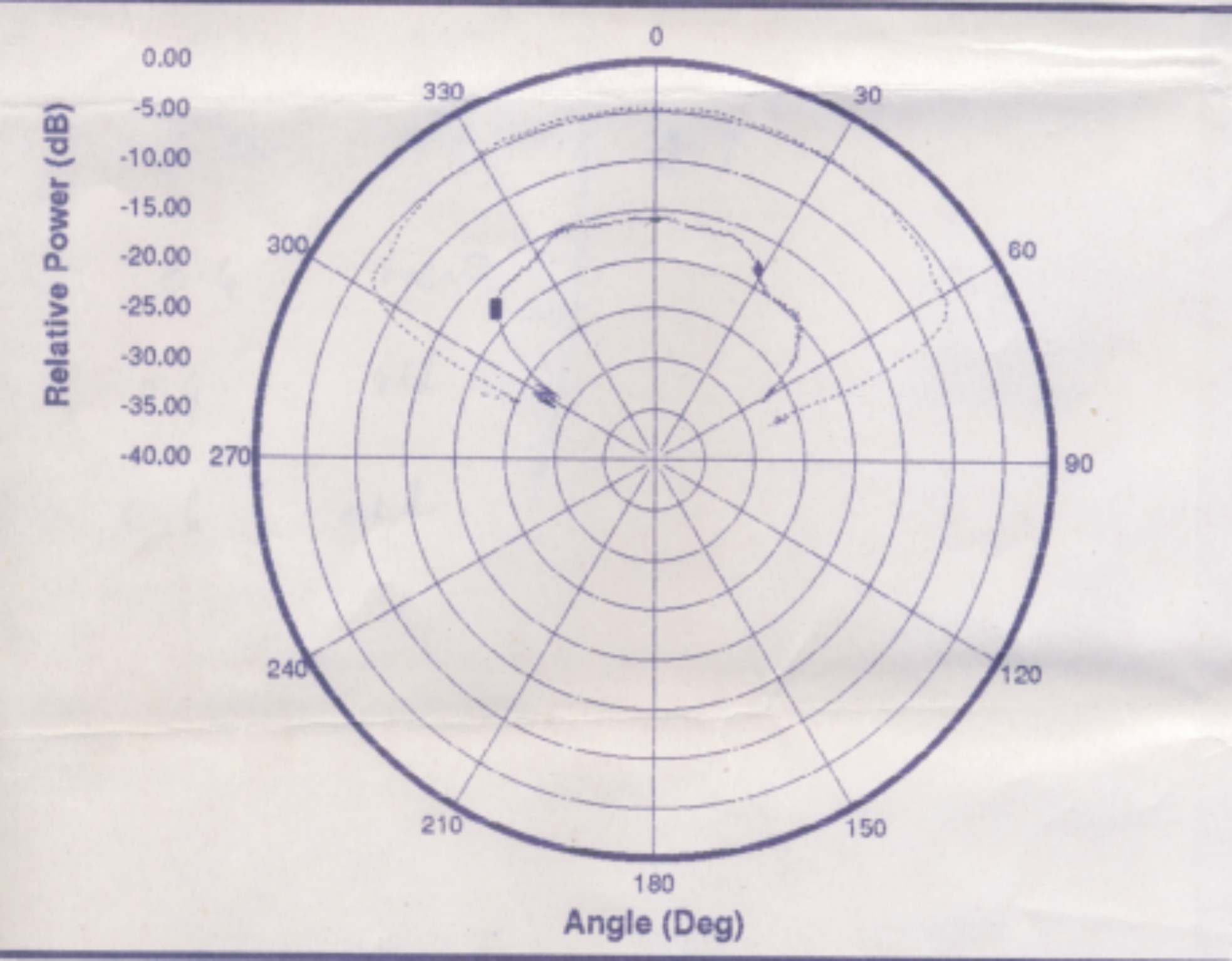

Luneberg Lens Radar Reflector 5.3 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9010 5.3 2.0 10 90-100 Rectilinear 0.65 M

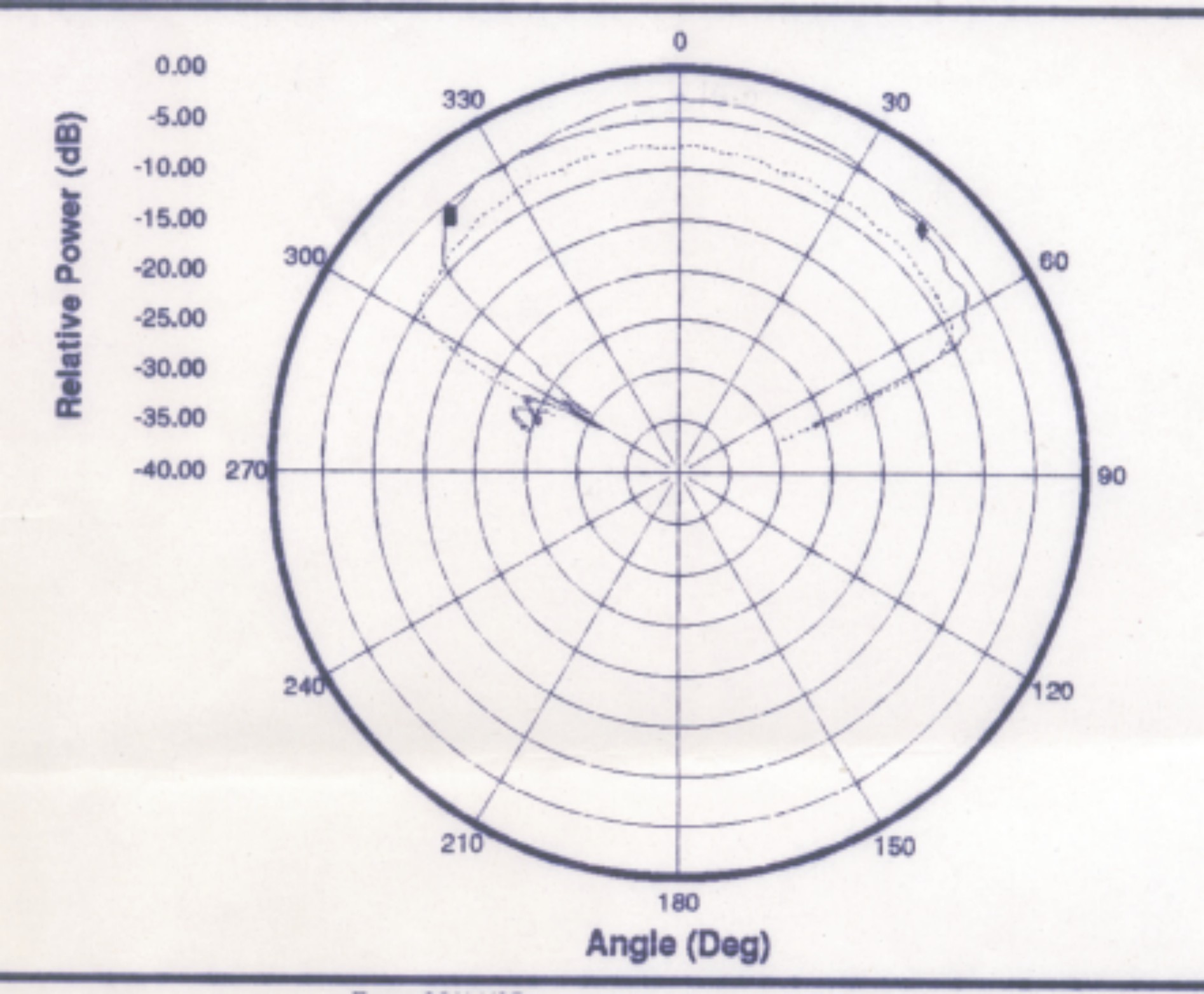

Luneberg Lens Radar Reflector 5.3 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9100 5.3 3.5 10 90-100 Rectilinear 0.62 M

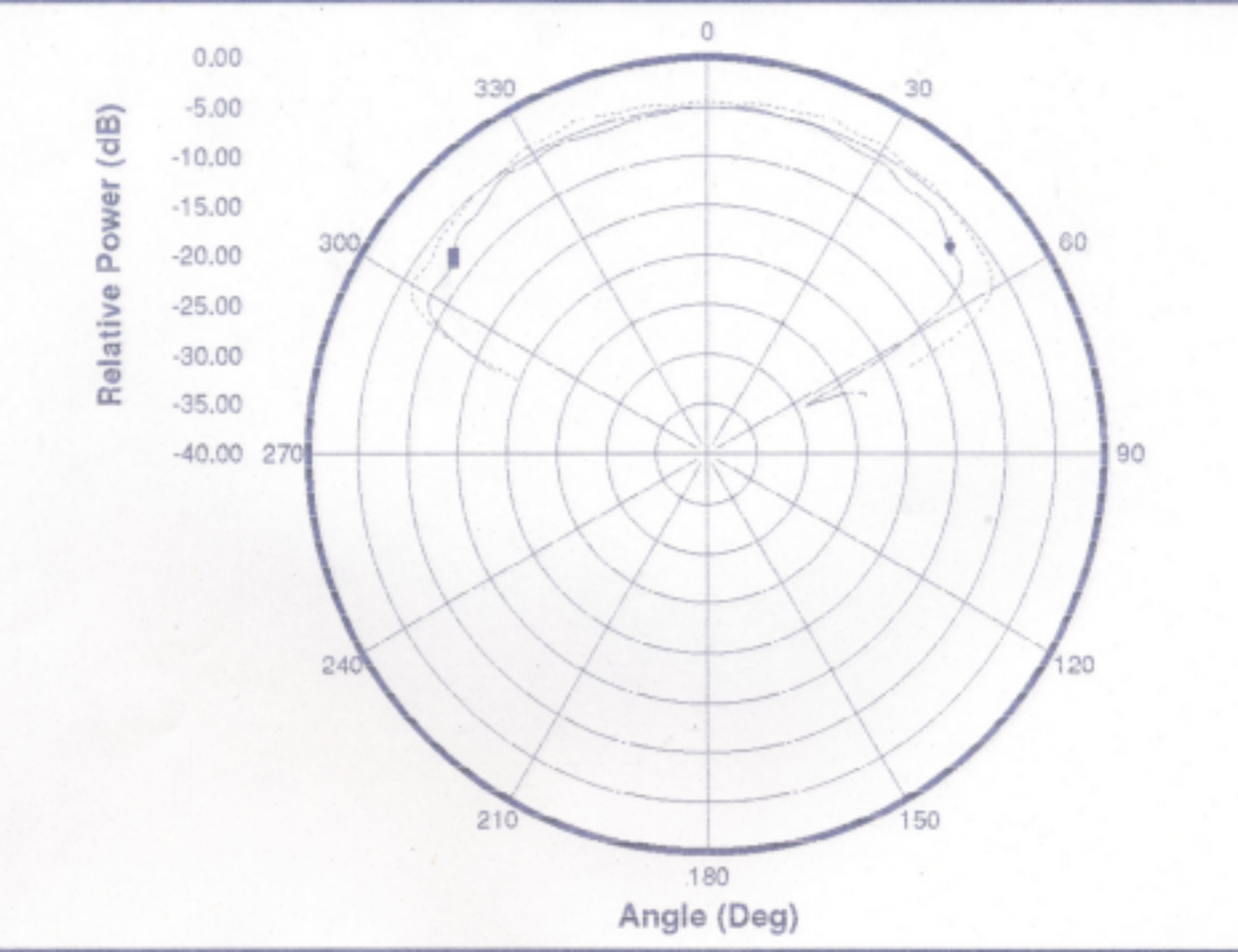

Luneberg Lens Radar Reflector 6 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9019 6.0 3.0 10 110 Rectilinear 1.0 M

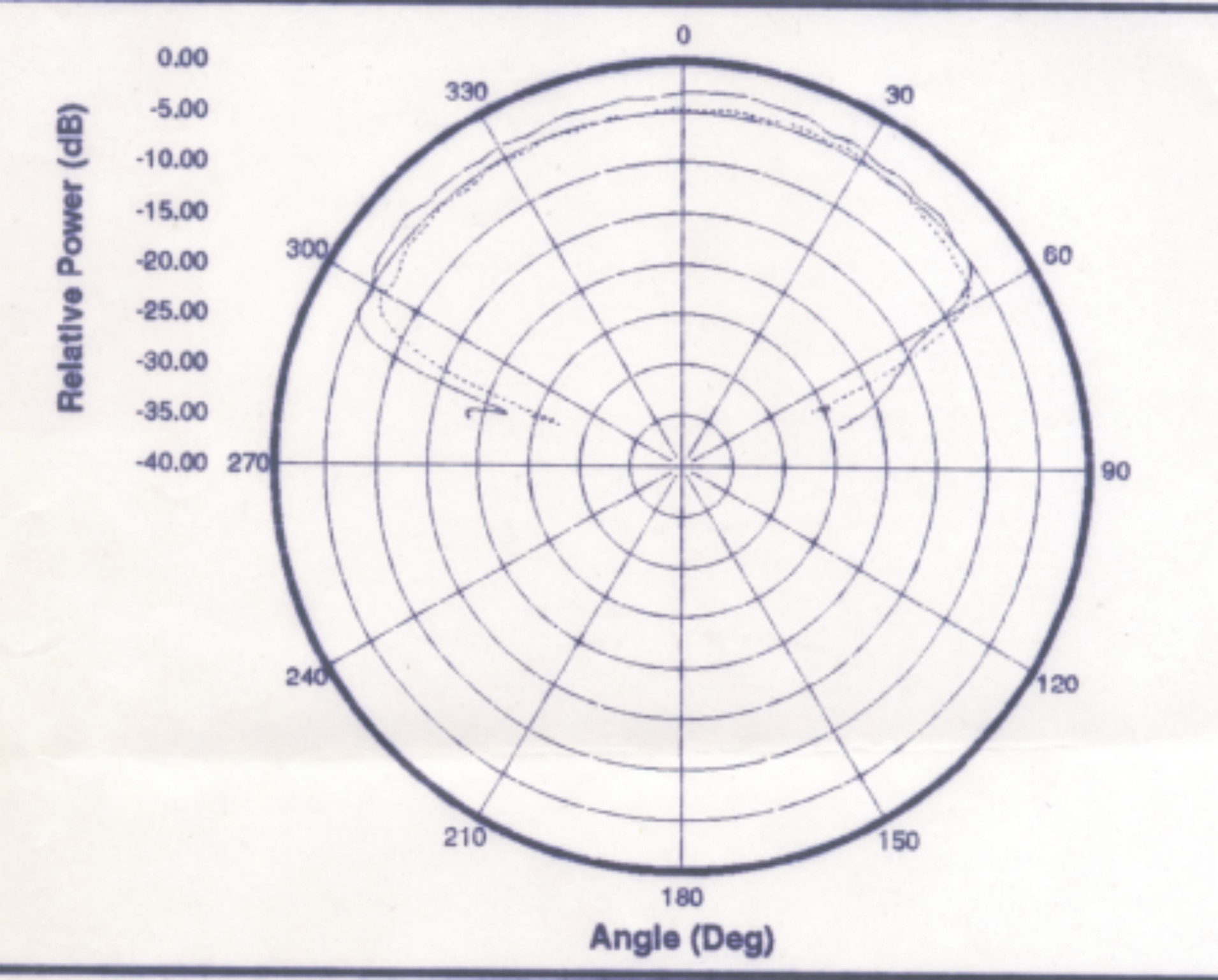

Luneberg Lens Radar Reflector 6.1 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9091 6.1 4.0 10 90-110 Rectilinear 1.05 M

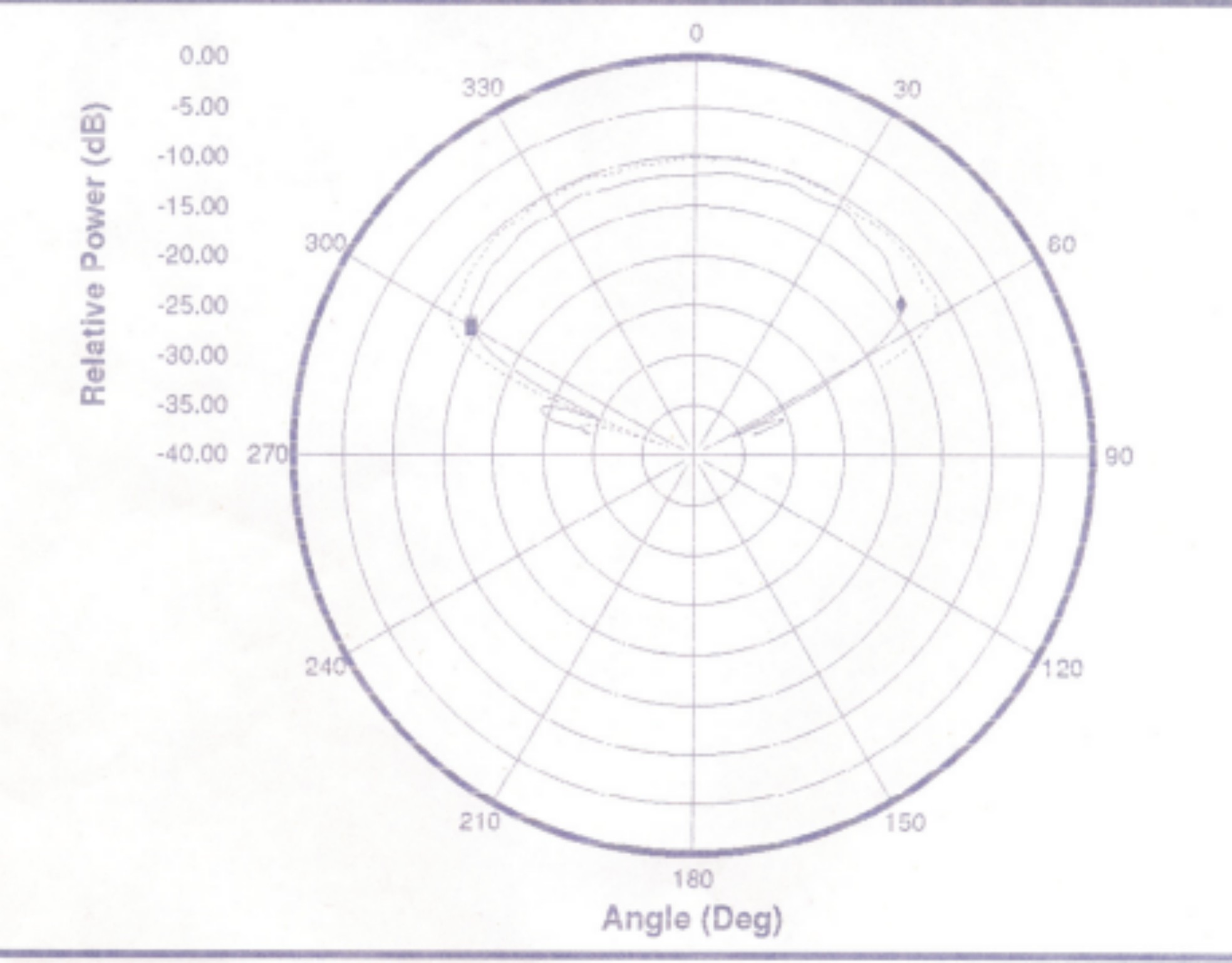

Luneberg Lens Radar Reflector 7.0 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9001 7.0 5.5 10 100 Rectilinear 1.5 M

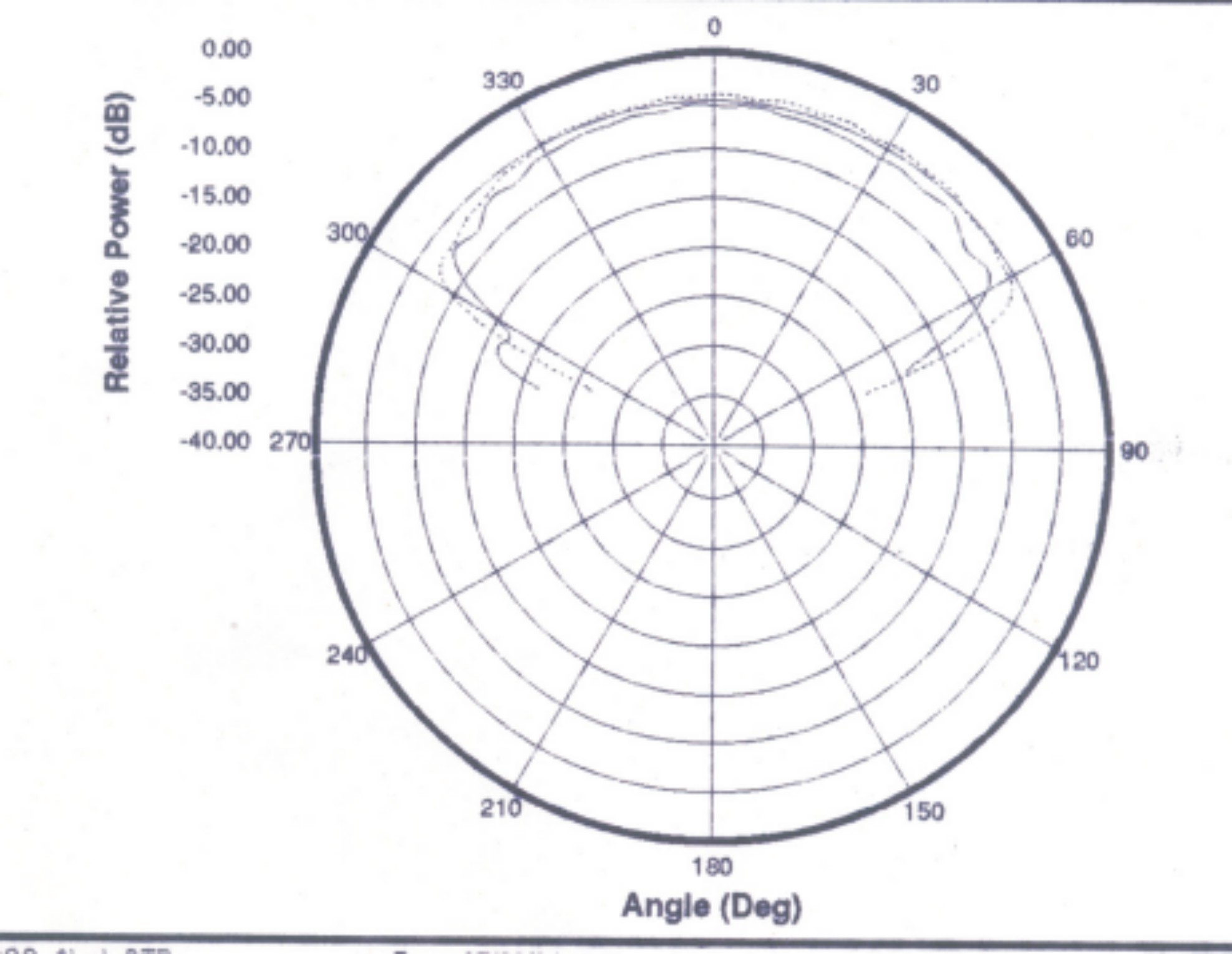

Luneberg Lens Radar Reflector 8.5 inches

Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9919 8.5 15 10 100 Rectilinear 2.5 M



Luneberg Lens Radar Reflector 9.0 inches



 Part No Diameter (inches) RCS (sq meter) Frequency (GHz) View Angle Polarization Weight
(KG)		 Type
9901 9.0 10 10 100 Rectilinear 3.6 M


3

List of technical parameters of TF Lomber lens reflector (Table 1):


Model Diameter
(mm)		 Weight
(g)		 Band Max RCS
(²)		 Reflection Characteristics
（Cone Angle）
TF-10-I 103.6 200 X 0.75  >120°
TF-12-I 122 350 X 1.46  >120°
TF-13-I 132 436 X 1.8  >120°
TF-14-I 146 550 X 2.3  >120°
TF-15-I 156 680 X 3  >120°
TF-16-I 162 740 X 3.3  >120°
TF-17-I 178 972 X 5  >120°
TF-190-I 190.5 1260 X 6.5  >120°
TF-19-I 195 1300 X 7  >120°
TF-20-I 207 1600 X 9  >120°
TF-22-I 227 2100 X 13  >120°
TF-25-I 259 3100 X 20  >120°
TF-30-I 307 5200 X 40  >120°

TF-I Lomber lens reflector is allowed to be used in several octaves with a wavelength greater than 2 cm. Its radar reflection cross-sectional area is inversely proportional to the square of the wavelength, and the reflection angle is correspondingly unchanged.
The radar reflection cross-sectional area shown in Table 1 refers to the corresponding data when the frequency is 9375mhz. Refer to table 2 for other frequency band data.

Table 2 maximum RCS of TF-I Lomber lens reflector (²)

  3G 5G 8G 9G 10G 12.5G 15G 18G
TF-10-I 0.08 0.18 0.5 0.7 0.75 1.1 1.3 1.5
TF-12-I 0.16 0.35 0.97 1.3 1.46 2.14 2.53 2.92
TF-13-I 0.18 0.48 1.2 1.68 1.8 2.41 3.01 3.61
TF-14-I 0.23 0.61 1.53 2.1 2.29 3.06 3.82 4.59
TF-15-I 0.3 0.8 2 2.8 3 4 5 6
TF-16-I 0.35 0.93 2.33 3 3.3 4.66 5.5 7
TF-17-I 0.5 1.2 3.3 5 5 6.5 8.5 10
TF-19-I 0.8 1.8 5 6.4 7 9.1 11 14
TF-20-I 1 2.2 6 8 9 12 15 18
TF-25-I 2.3 5 13 17 20 24 27 27
TF-30-I 4.5 10 26 36 40 45 40 35

TF-2 omnidirectional model, with horizontal coverage of 360 degrees and vertical coverage of plus or minus 15 degrees. The RCS reflection area is 1 / 4-1 / 3 of TF-1 of the same size

Working conditions
TF Luneburg Lens reflector is allowed to work normally under the following environmental conditions:
Operating temperature: - 40 ℃ - + 55 ℃;
Relative humidity: no more than 98%.
